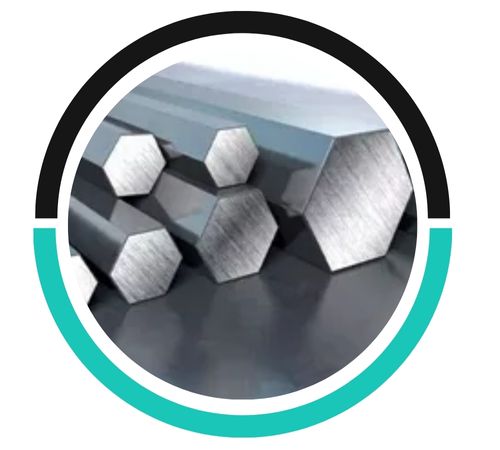

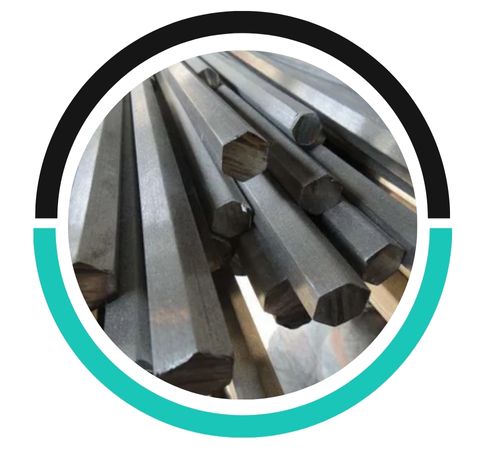

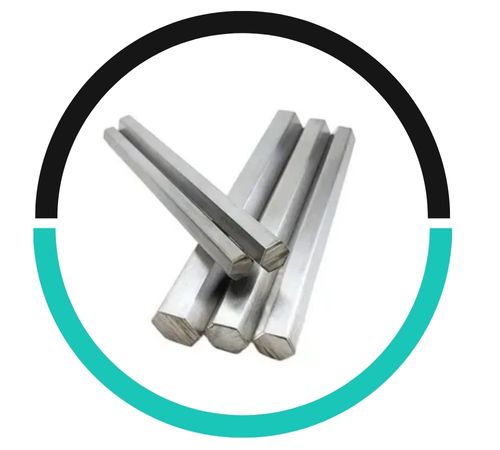

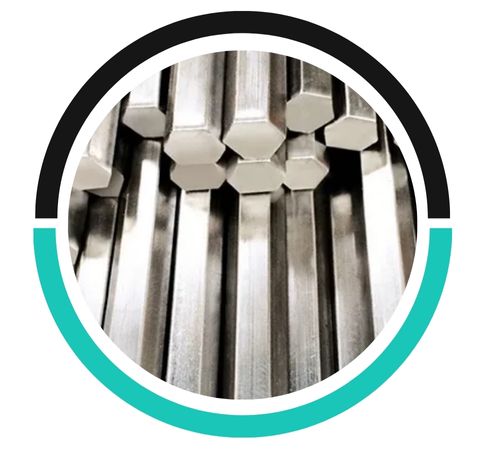

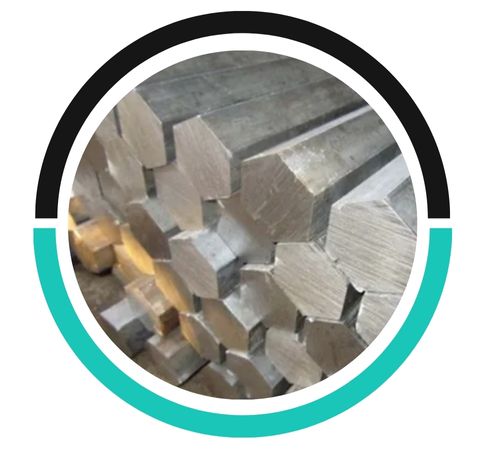

Neith Metals, located in Cairo, Egypt, stands out as a top-notch manufacturer and supplier of high-quality Stainless Steel 304L Hex Bars and Rods. Known for their precision engineering and cutting-edge manufacturing techniques, they strictly follow international quality standards to deliver products that boast exceptional strength, durability, and resistance to corrosion. Their Stainless Steel 304L Hex Bars and Rods are crafted with low carbon content, ensuring excellent weldability and structural integrity, making them perfect for tough industrial applications. Neith Metals caters to various industries, including chemical processing, food production, construction, and marine, providing reliable stainless steel solutions for both local and global clients.
The composition of Stainless Steel 304L Hex Bars and Rods includes chromium (18–20%) and nickel (8–12%), along with a low carbon content (maximum 0.03%) to reduce carbide precipitation and enhance weldability. A small mix of manganese, silicon, phosphorus, and sulfur boosts mechanical strength and workability. This alloy offers impressive tensile strength ranging from 485 to 620 MPa, yield strength between 170 and 310 MPa, and an elongation of about 40%. With outstanding toughness, ductility, and corrosion resistance, these hex bars and rods maintain top performance in welded and fabricated structures, even under challenging conditions.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 304L | 8.0 – 11.0 | 18.0 – 20.0 | 2.0 max | 8.0 – 12.0 | 0.045 max | 0.03 max | 1.0 max |
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 304L | 8.0 – 11.0 | 18.0 – 20.0 | 2.0 max | 8.0 – 12.0 | 0.045 max | 0.03 max | 1.0 max |
| Element | Density, lb/in3 | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 304L | 8.0 g/cm3 | 1400 °C (2550 °F) | 485 | 170 | 40 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
SS 304L hex bars/rods are typically available in sizes ranging from 3.17mm to 350mm in diameter, with lengths of 2 to 7.5 meters. These bars come in various finishes, such as polished or cold-drawn. Custom sizes and specifications can also be produced upon request to meet specific needs.
Yes, SS 304L hex bars/rods are highly weldable and suitable for fabrication into complex shapes. Their low carbon content minimizes carbide precipitation during welding, reducing the risk of corrosion. This material's excellent ductility and toughness allow easy forming, machining, and fabrication, making it ideal for intricate designs and applications.
SS 304L has lower carbon content than standard 304, reducing carbide precipitation and enhancing corrosion resistance, particularly after welding. While slightly lower in strength compared to higher-carbon grades like 304 or 316, it maintains excellent toughness and durability. SS 316 offers superior corrosion resistance in chloride environments due to added molybdenum.
Neith Metals’ Stainless Steel 304L Hex Bars and Rods are widely utilized in applications that demand high corrosion resistance, strength, and precision. They’re perfect for chemical tanks, pressure vessels, piping systems, heat exchangers, and food processing equipment. The hexagonal shape not only provides a superior grip but also allows for easy machining and effective load distribution, making them ideal for shafts, fasteners, and mechanical components. Additionally, they find use in architectural, marine, and industrial machinery applications where durability and long-lasting performance are essential. Stainless Steel 304L Hex Bars and Rods from Neith Metals offer dependable and versatile solutions for diverse needs.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
