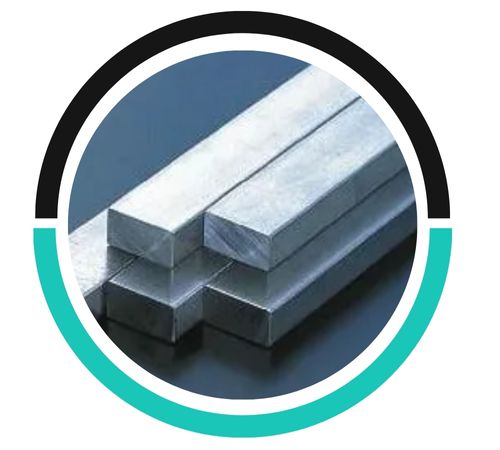

Neith Metals, located in Cairo, Egypt, has earned a solid reputation as a reliable manufacturer and supplier of top-notch stainless steel products, catering to the needs of various industrial and commercial sectors. Among their standout offerings are the Stainless Steel 316L Square Bars and Rods, which are highly regarded for their remarkable corrosion resistance, strength, and durability. Crafted using cutting-edge technology and rigorous quality control, these bars and rods are perfect for applications in marine, chemical, and construction industries. Neith Metals is dedicated to providing high-performance stainless steel materials that adhere to international standards, ensuring long-lasting and dependable results across a wide range of applications.
The Stainless Steel 316L Square Bars and Rods are made from a low-carbon austenitic alloy that includes 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, with a carbon content kept below 0.03% to enhance corrosion resistance and weldability. In terms of mechanical properties, they boast a tensile strength of about 515 MPa, a yield strength close to 205 MPa, and an elongation of up to 40%, which guarantees toughness even under mechanical stress. The addition of molybdenum significantly boosts their resistance to pitting, crevice corrosion, and oxidation, especially in environments rich in chlorides and marine conditions.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 316l | 0.08 | 18.0 | 2.00 | 14.0 | 0.045 max | 3.00 max | 0.10 max |
| Element | Density, lb/in3 | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316l | 8.0 g/cm3 | 1400 °C (2550 °F) | 485 Min | 170 Min | 40% Min |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316l | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, Stainless Steel 316L Square Bars are highly corrosion-resistant, especially to pitting and crevice corrosion in chloride environments. This makes them ideal for marine and chemical applications.
Stainless Steel 316L square bars are generally non-magnetic in their annealed state. However, they may exhibit slight magnetism when cold worked.
Yes, Stainless Steel 316L square bars are suitable for heat exchangers due to their excellent corrosion resistance, high-temperature stability, and good weldability. They are ideal for applications in corrosive and high-temperature environments.
These Stainless Steel 316L Square Bars and Rods find extensive use in industries that demand exceptional corrosion resistance, strength, and longevity. Typical applications include marine components, equipment for chemical and petrochemical processing, machinery for food and beverage production, and systems in the pharmaceutical sector. They are also utilized in architectural structures, heat exchangers, and pressure vessels. Thanks to their excellent weldability and resistance to chemical attacks, these bars and rods consistently perform well in challenging environments. Neith Metals’ Stainless Steel 316L Square Bars and Rods guarantee consistent quality, durability, and performance for the most demanding industrial, engineering, and construction projects.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
