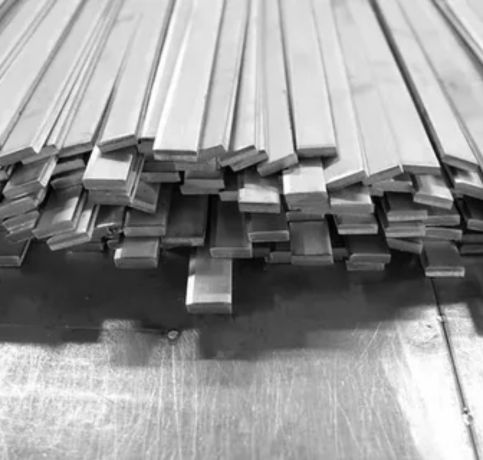

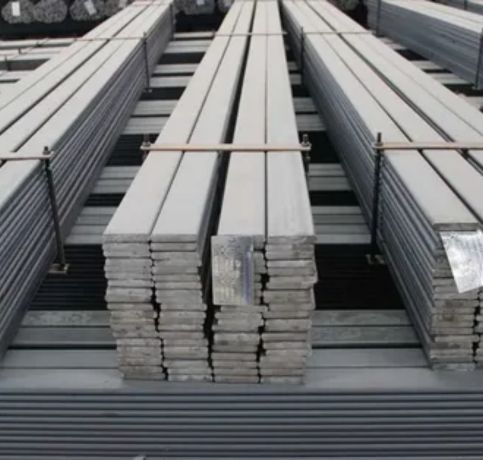

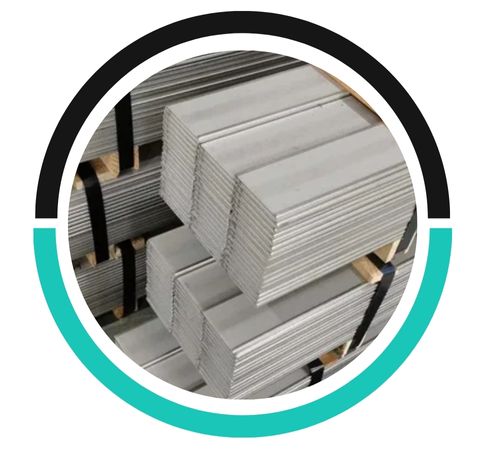

The Stainless Steel 316 Flat Bar is an austenitic alloy that contains 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, all while keeping its carbon content below 0.08%. In terms of mechanical properties, it boasts a tensile strength of around 515 MPa, a yield strength close to 205 MPa, and an elongation of up to 40%, ensuring it can withstand stress effectively. The addition of molybdenum significantly boosts its resistance to pitting, crevice corrosion, and oxidation, making it an excellent choice for harsh chemical, marine, and high-temperature industrial settings. Its unique blend of strength and corrosion resistance guarantees reliable performance even in the toughest environments.
Standard : ASTM A276, ASME SA276
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI, ASTM, ASME
Flat Bar Size : 2mm ~ 100mm
Thickness : 1/8″ – 3″
Width : 3/8” – 8”

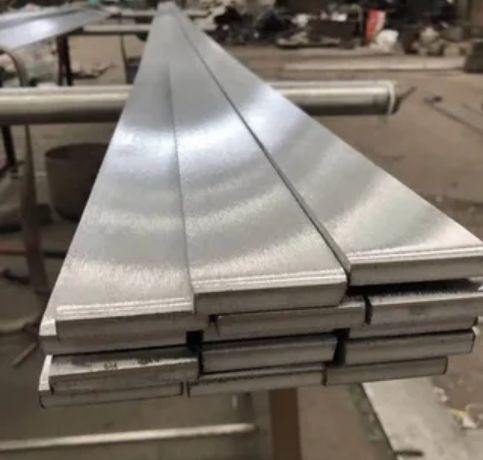

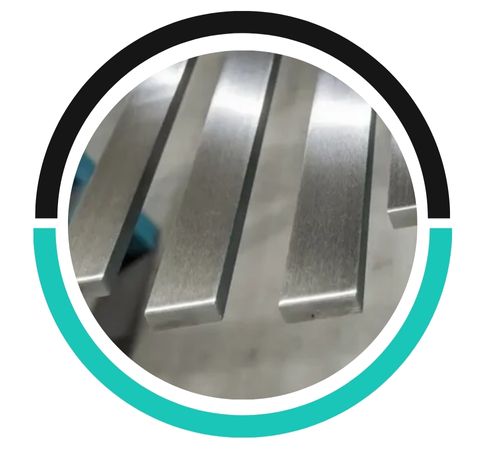

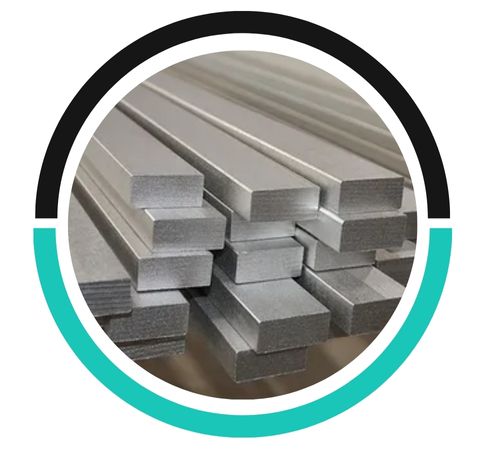

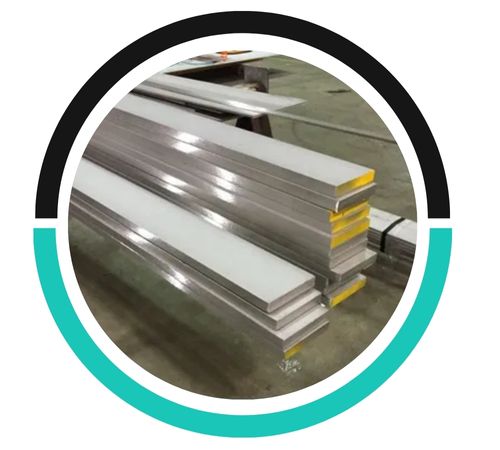

finish : Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
| Element | SS 316 |
| C | 0.08 max |
| Mn | 2.0 max |
| Si | 1.0 max |
| P | 0.045 max |
| S | 0.030 max |
| Cr | 16 – 18 |
| Ni | 11 – 14 |
| Mo | 2 – 3 |
| Fe | 67.845 min |
| Element | SS 316 |
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17-11-02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Stainless Steel 316 flat bars and rods are widely used in marine environments, chemical processing, food processing, medical equipment, and construction projects due to their excellent corrosion resistance.
Neith Metals is a leading manufacturer and supplier of premium-quality Stainless Steel 316 Flat Bar and Rods, catering to industrial, commercial, and personal needs across the Egypt and worldwide.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@neithmetals.com

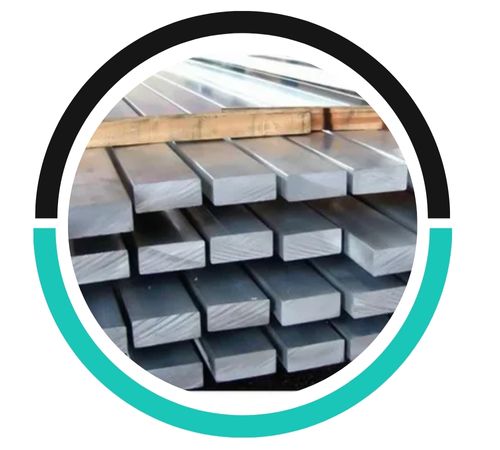

Stainless Steel 316 Flat Bars find extensive use in industries that demand top-notch corrosion resistance, mechanical strength, and durability. They are particularly suited for chemical and petrochemical plants, marine equipment, food processing machinery, and pharmaceutical applications. Common applications include structural supports, fasteners, shafts, valves, and components that are exposed to corrosive or high-temperature conditions. With outstanding weldability, strength, and long-lasting corrosion resistance, the Stainless Steel 316 Flat Bars from Neith Metals offer dependable, low-maintenance performance, making them the go-to choice for challenging industrial, engineering, and commercial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
