Neith Metals, located in Cairo, Egypt, has earned a solid reputation as a reliable manufacturer and supplier of top-notch alloy steel hollow bars. With a strong focus on quality, Neith Metals crafts precision-engineered products designed to meet the diverse needs of various industries. The company is dedicated to providing durable and dependable alloy steel hollow bars that comply with international standards. By utilizing cutting-edge technology and rigorous quality control measures, Neith Metals guarantees that each product delivers outstanding performance and longevity. Their alloy steel hollow bars find extensive use in sectors like oil & gas, automotive, construction, and manufacturing, making them a preferred choice for clients in search of trustworthy materials.

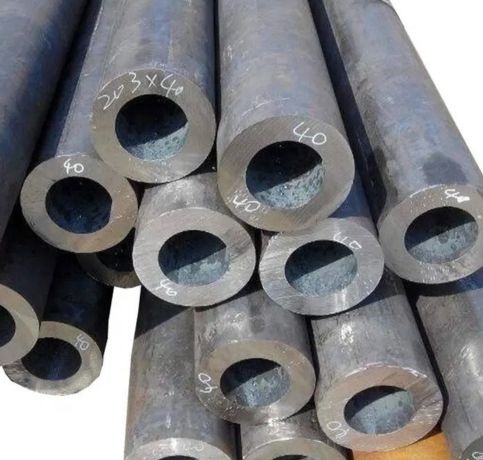

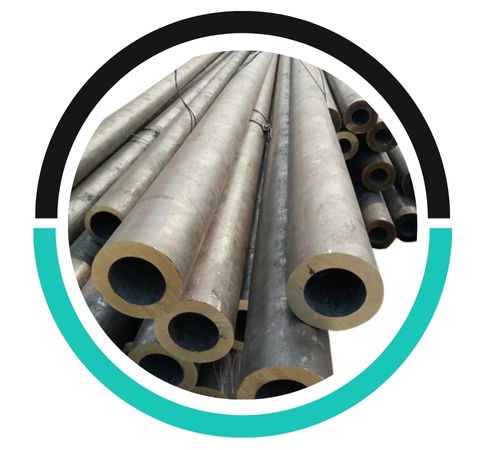

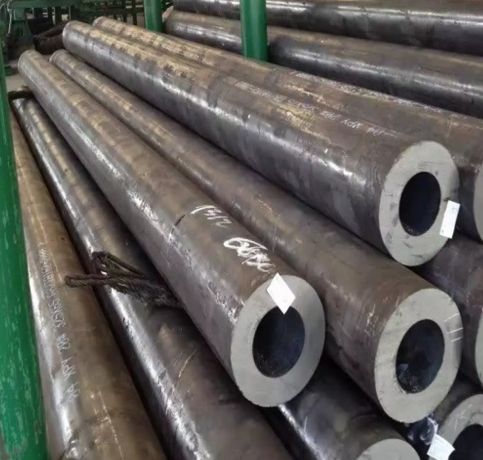

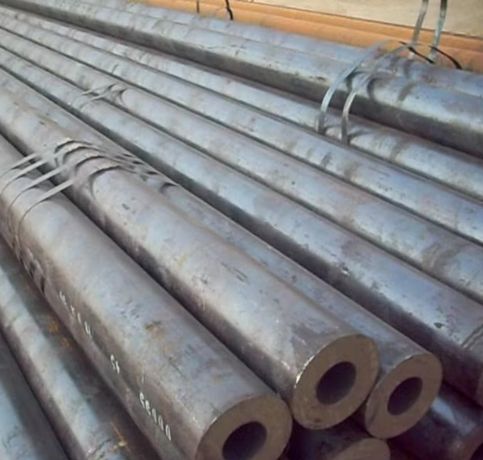

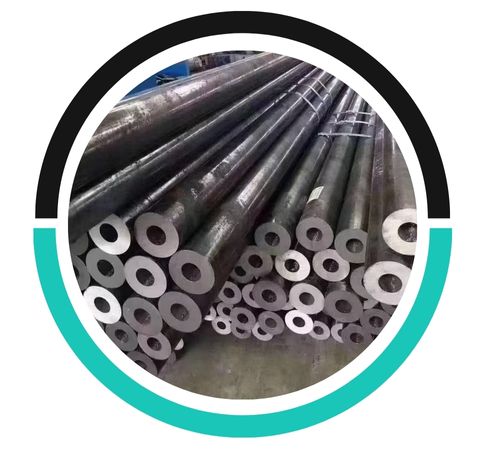

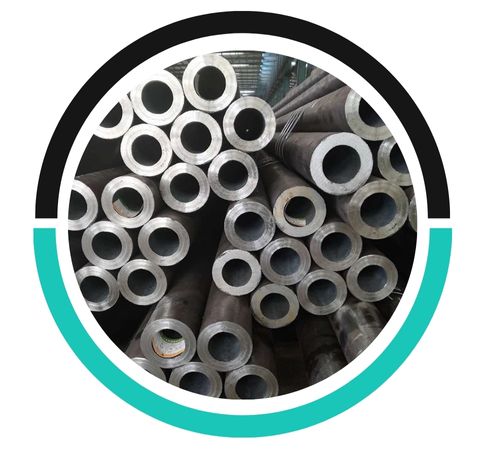

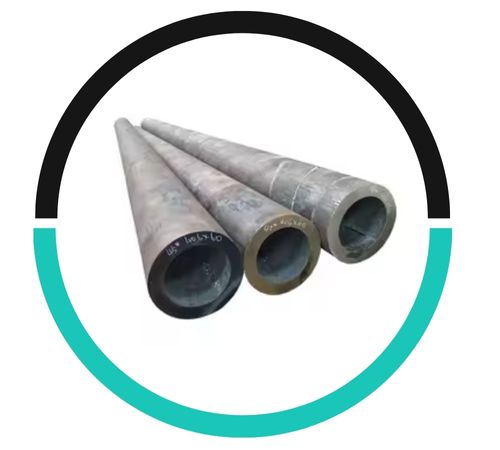

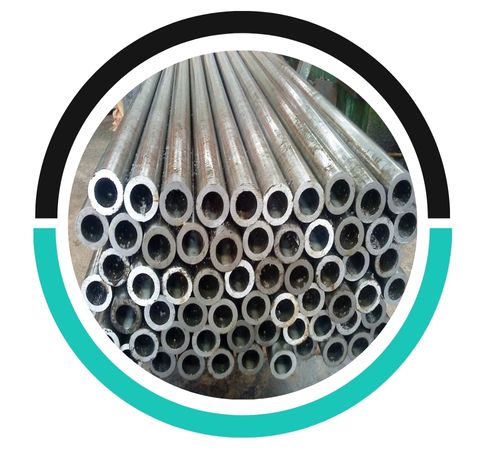

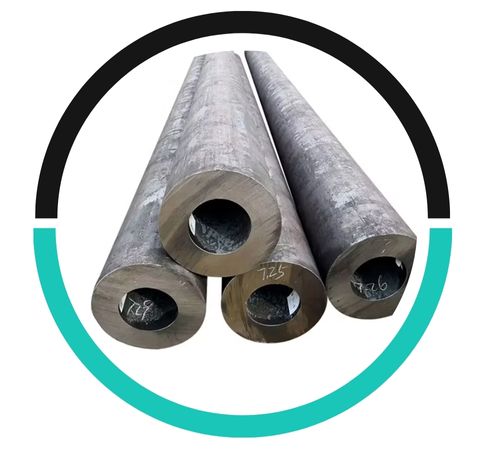

The alloy steel hollow bars from Neith Metals are crafted from high-quality alloy steels such as 4140, 4340, or EN19, which are renowned for their impressive strength and toughness. These bars typically include elements like chromium, molybdenum, and manganese, which boost hardness, wear resistance, and fatigue strength. They boast mechanical properties like high tensile strength (usually between 850–1000 MPa), excellent yield strength (around 650–800 MPa), and good elongation (up to 20%). Their machinability and weldability make them perfect for high-stress environments, ensuring reliable performance even under tough operational conditions.
| Specifications | ASTM A182, ASME SA182 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Range | 5mm to 500mm Dia in 100mm to 6000mm Length |
| Diameter | 10 mm To 200 mm |
| Thickenss | 0.5mm to 500mm Diameter |
| High Speed Steel (HSS), HCHCR & OHNS in Grade | M2, M3, M35, M42, T-1, T-4, T-15, T-42, D2, D3, H11, H13, OHNS-01 & EN52 |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1000 mm Long To 6000 mm Long |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Element | C | Cr | Mn | Mo | P | S | Si | Ni |
| F5 | 0.15 Max | 4.0-6.0 | 0.30-0.60 | 0.44-0.65 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |
| F1 | 0.15 Max | 3.0-5.0 | 0.30-0.60 | 0.40-0.50 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |
| F22 | 0.05-0.15 | 2.00-2.50 | 0.30-0.60 | 0.90-1.10 | 0.035 Max | 0.040 Max | 0.50 Max | – |
| F91 | 0.08-0.12 | 8.0-9.5 | 0.30-0.60 | 0.85-1.05 | 0.020 Max | 0.010 Max | 0.20-0.50 | 0.40 Max |
| F9 | 0.15 Max | 8.0-10.0 | 0.30-0.60 | 0.90- 1.10 | 0.030 Max | 0.030 Max | 0.50- 1.00 | – |
| F11 | 0.10-0.20 | 1.00-1.50 | 0.40-0.65 | 0.44-0.65 | 0.025 Max | 0.040 Max | 0.50-0.80 | – |
| Grade | Tensile Strength (ksi) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (ksi) min |
| F9 | 415 | 30 | 205 |
| F5 | 275 | 485 | 20 |
| Size | Chucked true to OD | Chucked true to ID | |||||||
| OD, mm | ID, mm | Max. OD, mm | Min. ID, mm | Max. OD, in. | Min. ID, in. | Max. OD, mm | Min. ID, mm | Max. OD, in. | Min. ID, in. |
| 32 | 20 | 31 | 21.9 | 1.220 | 0.862 | 30 | 21 | 1.185 | 0.827 |
| 32 | 16 | 31 | 18 | 1.220 | 0.709 | 30 | 17 | 1.181 | 0.669 |
| 36 | 25 | 35 | 26.9 | 1.378 | 1.059 | 34.1 | 26 | 1.343 | 1.024 |
| 36 | 20 | 35 | 22 | 1.378 | 0.866 | 34 | 21 | 1.339 | 0.827 |
| 36 | 16 | 35 | 18.1 | 1.378 | 0.713 | 33.9 | 17 | 1.335 | 0.669 |
| 40 | 28 | 39 | 29.9 | 1.535 | 1.177 | 38.1 | 29 | 1.500 | 1.142 |
| 40 | 25 | 39 | 27 | 1.535 | 1.063 | 38 | 26 | 1.496 | 1.024 |
| 40 | 20 | 39 | 22.1 | 1.535 | 0.870 | 37.9 | 21 | 1.492 | 0.827 |
| 45 | 32 | 44 | 33.9 | 1.732 | 1.335 | 43.1 | 33 | 1.697 | 1.299 |
| 45 | 28 | 44 | 30 | 1.732 | 1.181 | 43 | 29 | 1.693 | 1.142 |
| 45 | 20 | 44 | 22.2 | 1.732 | 0.874 | 42.8 | 21 | 1.685 | 0.827 |
| 50 | 36 | 49 | 38 | 1.929 | 1.496 | 48 | 37 | 1.890 | 1.457 |
| 50 | 32 | 49 | 34.1 | 1.929 | 1.343 | 47.9 | 33 | 1.886 | 1.299 |
| 50 | 25 | 49 | 27.2 | 1.929 | 1.071 | 47.8 | 26 | 1.882 | 1.024 |
| 56 | 40 | 55 | 42 | 2.165 | 1.654 | 54 | 41 | 2.126 | 1.614 |
| 56 | 36 | 55 | 38.1 | 2.165 | 1.500 | 53.9 | 37 | 2.122 | 1.457 |
| 56 | 28 | 55 | 30.3 | 2.165 | 1.193 | 53.7 | 29 | 2.114 | 1.142 |
| 63 | 50 | 62 | 51.9 | 2.441 | 2.043 | 61.1 | 51 | 2.406 | 2.008 |
| 63 | 45 | 62 | 47 | 2.441 | 1.850 | 61 | 46 | 2.402 | 1.811 |
| 63 | 40 | 62 | 42.2 | 2.441 | 1.661 | 60.8 | 41 | 2.394 | 1.614 |
| 63 | 36 | 62 | 38.3 | 2.441 | 1.508 | 60.7 | 37 | 2.390 | 1.457 |
| 63 | 32 | 62 | 34.4 | 2.441 | 1.354 | 60.6 | 33 | 2.386 | 1.299 |
| 71 | 56 | 69.9 | 58 | 2.752 | 2.283 | 68.9 | 57 | 2.713 | 2.244 |
| 71 | 45 | 69.9 | 47.3 | 2.752 | 1.862 | 68.6 | 46 | 2.701 | 1.811 |
| 71 | 40 | 69.9 | 42.4 | 2.752 | 1.669 | 68.5 | 41 | 2.697 | 1.614 |
| 71 | 36 | 69.9 | 38.5 | 2.752 | 1.516 | 68.4 | 37 | 2.693 | 1.457 |
| 75 | 60 | 73.8 | 62 | 2.906 | 2.441 | 72.8 | 61 | 2.866 | 2.402 |
| 75 | 50 | 73.8 | 52.2 | 2.906 | 2.055 | 72.6 | 51 | 2.858 | 2.008 |
| 75 | 40 | 73.8 | 42.5 | 2.906 | 1.673 | 72.3 | 41 | 2.846 | 1.614 |
| 80 | 63 | 78.8 | 65 | 3.102 | 2.559 | 77.8 | 64 | 3.063 | 2.520 |
| 80 | 50 | 78.8 | 52.4 | 3.102 | 2.053 | 77.4 | 51 | 3.047 | 2.008 |
| 80 | 45 | 78.8 | 47.5 | 3.102 | 1.870 | 77.3 | 46 | 3.043 | 1.811 |
| 80 | 40 | 78.8 | 42.6 | 3.102 | 1.677 | 77.2 | 41 | 3.039 | 1.614 |
| 85 | 67 | 83.7 | 69.1 | 3.295 | 2.720 | 82.6 | 68 | 3.252 | 2.677 |
| 85 | 55 | 83.7 | 57.4 | 3.295 | 2.260 | 82.3 | 56.0 | 3.240 | 2.205 |
| 85 | 45 | 83.7 | 47.6 | 3.295 | 1.874 | 82.1 | 46.0 | 3.232 | 1.811 |
| 90 | 71 | 88.6 | 73.1 | 3.488 | 2.878 | 87.6 | 72.1 | 3.449 | 2.839 |
| 90 | 63 | 88.6 | 65.3 | 3.488 | 2.571 | 87.3 | 64.0 | 3.437 | 2.520 |
| 90 | 56 | 88.6 | 58.5 | 3.488 | 2.303 | 87.1 | 57.0 | 3.429 | 2.244 |
| 90 | 50 | 88.6 | 52.6 | 3.488 | 2.071 | 87.0 | 51.0 | 3.425 | 2.008 |
| 95 | 75 | 93.5 | 77.3 | 3.681 | 3.041 | 92.4 | 76.2 | 3.641 | 2.997 |
| 95 | 67 | 93.5 | 69.3 | 3.681 | 2.728 | 92.2 | 68.0 | 3.630 | 2.677 |
| 95 | 50 | 93.5 | 52.7 | 3.681 | 2.075 | 91.8 | 51.0 | 3.614 | 2.008 |
| 100 | 80 | 98.5 | 82.3 | 3.878 | 3.240 | 97.4 | 81.2 | 3.835 | 3.197 |
| 100 | 71 | 98.5 | 73.4 | 3.878 | 2.890 | 97.2 | 72.1 | 3.827 | 2.839 |
| 100 | 63 | 98.5 | 65.5 | 3.878 | 2.579 | 97.0 | 64.0 | 3.819 | 2.520 |
| 100 | 56 | 98.5 | 58.7 | 3.878 | 2.311 | 96.8 | 57.0 | 3.811 | 2.244 |
| 106 | 80 | 104.4 | 82.5 | 4.110 | 3.248 | 103.1 | 81.2 | 4.059 | 3.197 |
| 106 | 71 | 104.4 | 73.5 | 4.110 | 2.894 | 103.0 | 72.1 | 4.055 | 2.839 |
| 106 | 63 | 104.4 | 65.7 | 4.110 | 2.587 | 102.7 | 64.0 | 4.043 | 2.520 |
| 106 | 56 | 104.4 | 58.9 | 4.110 | 2.319 | 102.5 | 57.0 | 4.035 | 2.244 |
| 112 | 90 | 110.3 | 92.5 | 4.343 | 3.642 | 109.2 | 91.4 | 4.299 | 3.598 |
| 112 | 80 | 110.3 | 82.6 | 4.343 | 3.252 | 108.9 | 81.2 | 4.287 | 3.197 |
| 112 | 71 | 110.3 | 73.7 | 4.343 | 2.902 | 108.7 | 72.1 | 4.280 | 2.839 |
| 112 | 63 | 110.3 | 65.8 | 4.343 | 2.591 | 108.5 | 64.0 | 4.272 | 2.520 |
| 118 | 90 | 116.2 | 92.7 | 4.575 | 3.650 | 114.9 | 91.4 | 4.524 | 3.598 |
| 118 | 80 | 116.2 | 82.8 | 4.575 | 3.260 | 114.6 | 81.2 | 4.512 | 3.197 |
| 118 | 71 | 116.2 | 73.8 | 4.575 | 2.906 | 114.5 | 72.1 | 4.508 | 2.839 |
| 118 | 63 | 116.2 | 66.0 | 4.575 | 2.598 | 114.2 | 64.0 | 4.496 | 2.520 |
| 125 | 100 | 123.1 | 102.7 | 4.846 | 4.043 | 121.9 | 101.5 | 4.799 | 3.996 |
| 125 | 90 | 123.1 | 92.8 | 4.846 | 3.654 | 121.7 | 91.4 | 4.791 | 3.598 |
| 125 | 80 | 123.1 | 82.9 | 4.846 | 3.264 | 121.4 | 81.2 | 4.780 | 3.197 |
| 125 | 71 | 123.1 | 74.0 | 4.846 | 2.913 | 121.3 | 72.1 | 4.772 | 2.839 |
| 132 | 106 | 130.0 | 108.8 | 5.118 | 4.283 | 128.8 | 107.6 | 5.071 | 4.236 |
| 132 | 90 | 130.0 | 93.0 | 5.118 | 3.661 | 128.4 | 91.4 | 5.055 | 3.598 |
| 132 | 80 | 130.0 | 83.1 | 5.118 | 3.272 | 128.1 | 81.2 | 5.043 | 3.197 |
| 132 | 71 | 130.0 | 74.2 | 5.118 | 2.921 | 121.2 | 72.1 | 5.035 | 2.839 |
| 140 | 112 | 137.9 | 115 | 5.429 | 4.528 | 136.6 | 113.7 | 5.378 | 4.476 |
| 140 | 100 | 137.9 | 103.1 | 5.429 | 4.059 | 136.3 | 101.5 | 5.366 | 3.996 |
| 140 | 90 | 137.9 | 93.2 | 5.429 | 3.669 | 136.1 | 91.4 | 5.358 | 3.598 |
| 140 | 80 | 137.9 | 83.3 | 5.429 | 3.280 | 135.8 | 81.2 | 5.346 | 3.197 |
| 150 | 125 | 147.7 | 128.1 | 5.815 | 5.043 | 146.5 | 126.9 | 5.768 | 4.996 |
| 150 | 106 | 147.7 | 109.3 | 5.815 | 4.303 | 146 | 107.6 | 5.748 | 4.236 |
| 150 | 95 | 147.7 | 98.4 | 5.815 | 3.874 | 145.7 | 96.4 | 5.736 | 3.795 |
| 150 | 80 | 147.7 | 83.6 | 5.815 | 3.291 | 145.3 | 81.2 | 5.720 | 3.197 |
| 160 | 132 | 157.6 | 135.3 | 6.205 | 5.327 | 156.3 | 134 | 6.154 | 5.276 |
| 160 | 122 | 157.6 | 125.4 | 6.205 | 4.937 | 156 | 123.8 | 6.142 | 4.874 |
| 160 | 112 | 157.6 | 115.5 | 6.205 | 4.547 | 155.8 | 113.7 | 6.134 | 4.476 |
| 160 | 90 | 157.6 | 94.0 | 6.205 | 3.701 | 155.2 | 91.4 | 6.110 | 3.598 |
| 170 | 140 | 167.4 | 143.5 | 6.591 | 5.650 | 166 | 142.1 | 6.535 | 5.594 |
| 170 | 130 | 167.4 | 133.6 | 6.591 | 5.260 | 165.8 | 132 | 6.528 | 5.197 |
| 170 | 128 | 167.4 | 131.6 | 6.591 | 5.181 | 165.7 | 130 | 6.524 | 5.118 |
| 170 | 118 | 167.4 | 121.7 | 6.591 | 4.791 | 165.5 | 119.8 | 6.516 | 4.717 |
| 170 | 106 | 167.4 | 109.8 | 6.591 | 4.323 | 165.2 | 107.6 | 6.504 | 4.236 |
| 170 | 100 | 167.4 | 103.9 | 6.591 | 4.091 | 165 | 101.5 | 6.496 | 3.996 |
| 180 | 150 | 177.3 | 153.6 | 6.980 | 6.047 | 176 | 152.3 | 6.929 | 5.996 |
| 180 | 140 | 177.3 | 143.7 | 6.980 | 5.657 | 175.7 | 142.1 | 6.917 | 5.594 |
| 180 | 125 | 177.3 | 128.9 | 6.980 | 5.075 | 175.3 | 126.9 | 6.902 | 4.996 |
| 180 | 100 | 177.3 | 104.1 | 6.980 | 4.098 | 174.7 | 101.5 | 6.878 | 3.996 |
| 190 | 160 | 187.1 | 163.8 | 7.366 | 6.449 | 185.7 | 162.4 | 7.311 | 6.394 |
| 190 | 150 | 187.1 | 153.9 | 7.366 | 6.059 | 185.5 | 152.3 | 7.303 | 5.996 |
| 190 | 132 | 187.1 | 136 | 7.366 | 5.354 | 185.1 | 134 | 7.287 | 5.276 |
| 200 | 170 | 197.0 | 173.9 | 7.756 | 6.846 | 195.6 | 172.6 | 7.701 | 6.795 |
| 200 | 160 | 197.0 | 164 | 7.756 | 6.457 | 195.4 | 162.4 | 7.693 | 6.394 |
| 200 | 150 | 197.0 | 154.1 | 7.756 | 6.067 | 195.2 | 152.3 | 7.685 | 5.996 |
| 200 | 140 | 197.0 | 144.2 | 7.756 | 5.677 | 194.9 | 142.1 | 7.673 | 5.594 |
| 212 | 170 | 208.8 | 174.2 | 8.220 | 6.858 | 207.2 | 172.6 | 8.157 | 6.795 |
| 212 | 150 | 208.8 | 154.4 | 8.220 | 6.079 | 206.6 | 152.3 | 8.133 | 5.997 |
| 212 | 130 | 208.8 | 134.6 | 8.220 | 5.299 | 206.2 | 132 | 8.118 | 5.197 |
| 224 | 180 | 220.6 | 184.4 | 8.685 | 7.260 | 218.9 | 182.7 | 8.618 | 7.193 |
| 224 | 140 | 220.6 | 144.8 | 8.685 | 5.701 | 217.9 | 142.1 | 8.579 | 5.594 |
| 236 | 190 | 232.4 | 194.6 | 9.150 | 7.661 | 230.7 | 192.9 | 9.083 | 7.594 |
| 236 | 150 | 232.4 | 155.0 | 9.150 | 6.102 | 229.7 | 152.3 | 9.043 | 5.996 |
| 250 | 200 | 246.2 | 204.9 | 9.693 | 8.067 | 244.3 | 203.0 | 9.618 | 7.992 |
| 275 | 200 | 268.9 | 205.4 | 10.587 | 8.087 | 266.5 | 203.0 | 10.492 | 7.992 |
Alloy steel hollow bars and rods offer moderate corrosion resistance depending on the alloy composition. However, they may require additional treatments like coating or plating for enhanced protection against corrosion.
Alloy steel hollow bars can typically withstand temperatures ranging from -50°C to 500°C, depending on the alloy grade. Some high-performance alloys can endure even higher temperatures, making them versatile for various applications.
Neith Metals’ alloy steel hollow bars are widely used in demanding industries thanks to their strength, toughness, and machinability. In the oil and gas sector, they are essential for tool components, drill collars, and structural supports. In the automotive and heavy machinery fields, they play a crucial role in manufacturing drive shafts, axles, and hydraulic cylinders. Construction and engineering firms rely on them for load-bearing components, frameworks, and precision-machined parts. Their hollow design reduces weight without sacrificing strength, making them ideal for applications that require a high strength-to-weight ratio. Neith Metals’ alloy steel hollow bars provide versatility and durability in critical, high-performance settings.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Neith Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Alexandria, Egypt
