Alloy Steel F22 Bars/Rods

Neith Metals is a well-respected manufacturer and supplier located in Cairo, Egypt, that specializes in high-quality Alloy Steel F22 Bars and Rods. With a strong commitment to quality, precision, and customer satisfaction, Neith Metals delivers alloy steel products that adhere to international standards for critical applications. The company serves a variety of industries, providing solutions designed to excel in challenging environments. By combining cutting-edge manufacturing techniques with rigorous quality control, Neith Metals has earned a solid reputation for reliability and excellence in alloy steel products, making it a trusted partner in both local and global markets.

Alloy Steel F22 Rods Dealer in Cairo, Alloy Steel F22 Bars Manufacturer in Cairo, Alloy Steel F22 Square Bars Supplier in Alexandria, Alloy Steel F22 Flat Bars Price List in Alexandria, Alloy Steel F22 Rectangular Bars Supplier in Port Said, Alloy Steel F22 Bars Price List in Egypt, Alloy Steel F22 Round Bars Weight Calculator Exporter Stockist in Cairo.

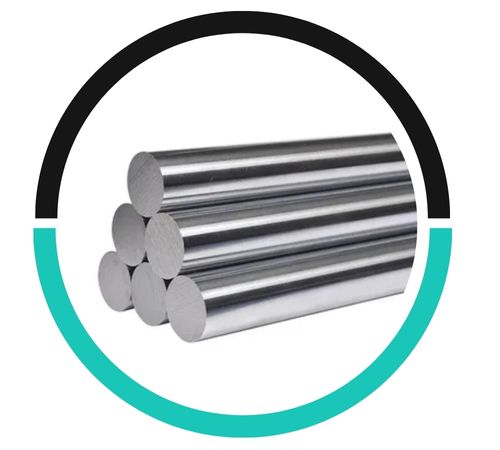

Alloy Steel F22 Round Bars

Alloy Steel F22 Hex Bars

Alloy Steel F22 Rods

What is Alloy Steel F22 Bars ?

Alloy Steel F22 Bars and Rods are primarily made up of chromium (1.00–1.50%) and molybdenum (0.40–0.65%), along with carbon, manganese, silicon, and trace elements like phosphorus and sulfur. This unique chemical composition boosts the alloy’s strength, hardenability, and resistance to oxidation and wear. These bars boast impressive mechanical properties, including a tensile strength ranging from 415 to 585 MPa, a minimum yield strength of 205 MPa, and exceptional impact resistance. Their performance remains consistent even at elevated temperatures, offering high creep and rupture strength. F22 bars are also recognized for their good machinability and structural integrity.

Alloy Steel F22 Rods Exporter in Egypt, Alloy Steel F22 Round Bars Stockist in Alexandria, Alloy Steel F22 Hex Bars Supplier in Egypt, Alloy Steel F22 Cold Drawn Round Bars Distributor in Egypt, Alloy Steel F22 Rods Stockist Port Said Alloy Steel F22 Rods Price in Port Said, Alloy Steel F22 Round Bars Price List, Alloy Steel F22 Rectangular Bars Supplier in Egypt, Alloy Steel F22 Bars Dimensions in Egypt.

Alloy Steel F22 Bars Specifications

type

Alloy Steel ASTM A182 F22 Round Bars

Type

rod, square bar, Round bar, hexagon bar, flat bar, channel bar, angle bar, threaded bar

Standards

Alloy Steel ASTM A182 F22 , A479, A314, GB4226-84, GB/T1220-2007, JISG4311-91, JIS G4318-98, EN 10095-99, GB4226-84, EN10088-3-2005, JIS G3033-2005, etc

Surface

bright round bar, pickled round bar, black round bar

Package Details

Standard seaworthy package(wooden boxes package,pvc package, or other package)

Technique

Forged/Hot Rolled/Cold Drawn/Peeled

Range

Range – 3.17mm to 350mm dia

Diameter

5mm-500mm (Customized size is acceptable)

Length

1m-9m or according to the customer’s requirement

Chemical Compositions of Alloy Steel F22 Bars

Grade	C	Mn	Si	Mo	P	Cr
ASTM A182 F22	0.05 – 0.15	0.30 – 0.60	0.50 max	0.87 – 1.13	0.040	2.00 – 2.50

Mechanical Properties of Alloy Steel F22 Bars

Tensile Strength (ksi) min	Elongation (% in 50mm) min	Yield Strength 0.2% Proof (ksi) min
570	23	295

You Need Our Support, to Have Any Projects?

Test Certificate

Why Neith Metals?

Packaging

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Alloy Steel F22 Bars Types

Stockist of Alloy Steel F22 Round Bars in Cairo, Alloy Steel F22 Bars Supplier in Egypt, Alloy Steel F22 Rods Price List in Alexandria, Alloy Steel F22 Rectangular Bars Supplier in Cairo, Alloy Steel F22 Hexagonal Bars Exporter in Cairo, Alloy Steel F22 T-Bars Exporter in Egypt, Alloy Steel F22 Cold Rolled Rods Exporter in Alexandria, Alloy Steel F22 Round Bar Manufacturer in Port Said, Alloy Steel F22 Round Bars Distributor in Egypt, Alloy Steel F22 Polished Rods Dealer in Cairo

Equivalent Material Grade Of Alloy Steel F22 Bars

STANDARD	WERKSTOFF NR.	UNS
ASTM A182 F22	1.7380	K21590

weight chart of Alloy Steel F22 Bars

SIZE IN INCHES	ROUND	SQUARE	OCTAGON	HEXAGON	SIZE IN INCHES	ROUND	SQUARE	OCTAGON	HEXAGON
1/16	.010	.013	.011	.012	11/16	1.262	1.607	1.333	1.392
5/64	.017	.022	.018	.019	45/64	1.320	1.681	1.394	1.456
3/32	.023	.029	.024	.025	23/32	1.380	1.756	1.487	1.521
7/64	.031	.039	.033	.034	47/64	1.440	1.834	1.521	1.588
1/8	.042	.053	.044	.046	3/4	1.502	1.913	1.586	1.656
9/64	.053	.067	.056	.058	25/32	1.630	2.075	1.721	1.797
5/32	.065	.083	.069	.072	13/16	1.763	2.245	1.862	1.944
11/64	.079	.100	.083	.087	27/32	1.901	2.421	2.008	2.096
3/16	.094	.120	.099	.104	7/8	2.045	2.603	2.159	2.254
13/64	.110	.140	.116	.121	29/32	2.193	2.792	2.316	2.418
7/32	.128	.163	.135	.141	15/16	2.347	2.988	2.479	2.588
15/64	.147	.187	.155	.162	31/32	2.506	3.191	2.646	2.763
1/4	.167	.213	.176	.184	1	2.670	3.400	2.820	2.945
17/64	.188	.240	.199	.207	1-1/16	3.015	3.838	3.183	3.324
9/32	.211	.269	.223	.233	1-1/8	3.380	4.303	3.569	3.727
19/64	.235	.300	.248	.259	1-3/16	3.766	4.795	3.977	4.152
5/16	.261	.332	.275	.288	1-1/4	4.172	5.313	4.407	4.601
21/64	.288	.360	.304	.318	1-5/16	4.600	5.857	4.858	5.072
11/32	.316	.402	.334	.348	1-3/8	5.049	6.428	5.332	5.567
23/64	.345	.439	.364	.381	1-7/16	5.518	7.026	5.827	6.085
3/8	.376	.478	.397	.414	1-1/2	6.008	7.650	6.345	6.625
25/64	.408	.519	.431	.450	1-9/16	6.519	8.301	6.885	7.189
13/32	.441	.561	.466	.486	1-5/8	7.051	8.978	7.446	7.775
27/64	.475	.605	.502	.524	1-11/16	7.604	9.682	8.030	8.385
7/16	.511	.651	.540	.564	1-3/4	8.178	10.41	8.634	9.018
29/64	.548	.698	.579	.604	1-13/16	8.773	11.17	9.265	9.673
15/32	.587	.747	.620	.647	1-7/8	9.388	11.95	9.911	10.35
31/64	.627	.798	.662	.692	1-15/16	10.02	12.76	10.58	11.05
1/2	.668	.850	.705	.736	2	10.68	13.60	11.28	11.78
33/64	.710	.904	.750	.783	2-1/16	11.36	14.46	11.99	12.53
17/32	.754	.960	.796	.831	2-1/8	12.06	15.35	12.73	13.30
35/64	.799	1.017	.844	.881	2-3/16	12.78	16.27	13.49	14.09
9/16	.845	1.076	.892	.932	2-1/4	13.52	17.21	14.27	14.91
37/64	.893	1.136	.943	.985	2-5/16	14.28	18.18	15.08	15.75
19/32	.941	1.199	.994	1.038	2-3/8	15.06	19.18	15.91	16.61
39/64	.992	1.263	1.048	1.094	2-7/16	15.87	20.20	16.75	17.49
5/8	1.043	1.328	1.102	1.150	2-1/2	16.69	21.25	17.62	18.40
41/64	1.096	1.395	1.207	1.209	2-9/16	17.53	22.33	18.52	19.34
21/32	1.150	1.464	1.214	1.268	2-5/8	18.40	23.43	19.43	20.29
43/64	1.205	1.535	1.272	1.329	2-11/16	19.29	24.56	20.37	21.27

Frequently Asked Questions (FAQ)

What is Alloy Steel F22 used for?

Alloy Steel F22 is commonly used in high-temperature applications such as pressure vessels, boilers, and heat exchangers due to its excellent strength, resistance to oxidation, and high-temperature stability.

What are the mechanical properties of Alloy Steel F22 Bars and Rods?

Alloy Steel F22 Bars and Rods offer good tensile strength, high creep resistance, and excellent resistance to thermal fatigue, making them ideal for harsh environments.

Is Alloy Steel F22 suitable for welding?

Yes, Alloy Steel F22 can be welded with appropriate procedures, but preheating and post-weld heat treatment may be necessary to avoid cracking.

Alloy Steel F22 Bars Uses

Alloy Steel F22 Bars and Rods find extensive use in industries that demand strength, durability, and heat resistance. This includes sectors like oil and gas, petrochemical plants, power generation facilities, and chemical processing industries. They are often utilized in the manufacturing of pressure vessels, steam piping, flanges, fittings, and valves, particularly in high-pressure and high-temperature settings. The alloy’s ability to withstand thermal and mechanical stress makes it perfect for heavy-duty applications. With outstanding corrosion resistance and a long service life, F22 bars ensure reliable performance in critical infrastructure and industrial components that face extreme working conditions.
