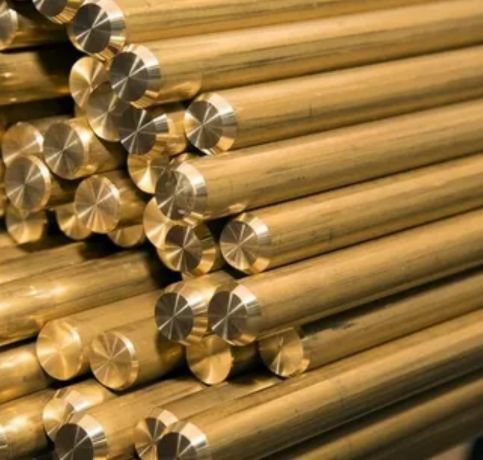

Neith Metals, based in Cairo, Egypt, stands out as a top manufacturer and supplier of high-quality Phosphorous Bronze Bars and Rods. These products are celebrated for their exceptional strength, resistance to corrosion, and impressive durability. The company is committed to providing materials that adhere to international standards, ensuring reliable solutions for a variety of industrial applications. With state-of-the-art production facilities and rigorous quality control measures, Neith Metals guarantees precision and consistency in every item they produce. Their Phosphorous Bronze Bars and Rods are trusted by sectors like marine, electrical, and mechanical engineering, thanks to their outstanding performance and long-lasting reliability.
Phosphorous Bronze Bars and Rods are mainly made up of copper (about 88–95%), tin (4–8%), and a touch of phosphorus (0.01–0.35%) to boost strength and wear resistance. These alloys showcase impressive tensile strength (between 350–700 MPa), remarkable elasticity, and excellent fatigue resistance. They also provide exceptional corrosion resistance, especially in marine and chemical settings. The inclusion of phosphorus enhances hardness, machinability, and stiffness, making these bars and rods perfect for components that need to withstand stress while maintaining durability and precision.
| Specifications | AMS 4625, ASTM B139, ASME SB139 |

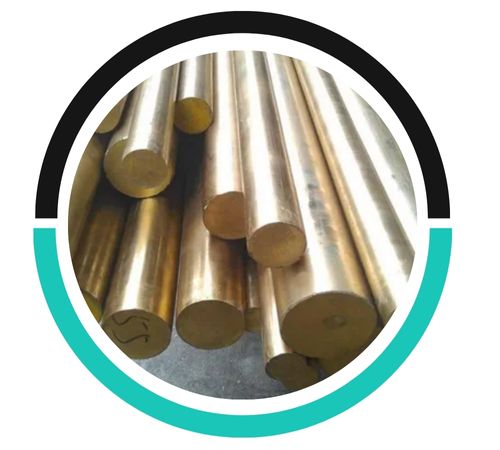

| Phosphor Bronze Round bar size | Diameter: 3mm~800mm |
| Phosphor Bronze Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

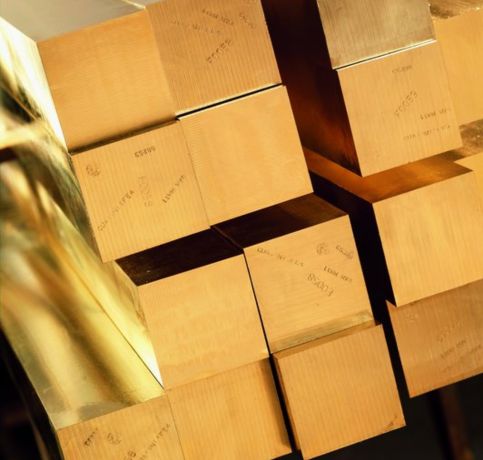

| Phosphor Bronze Square bar size | 4mm*4mm~100mm*100mm |

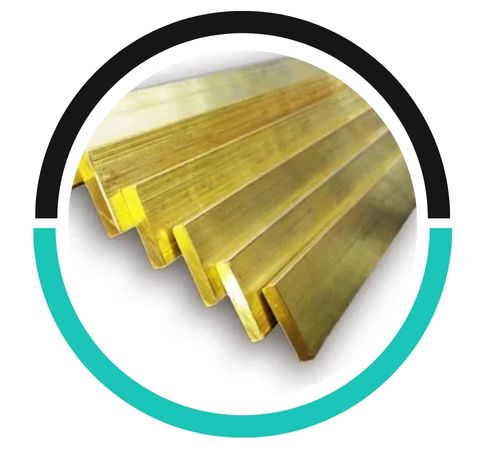

| Phosphor Bronze Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |

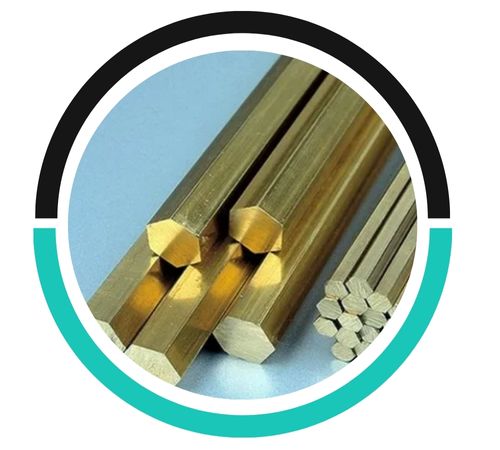

| Phosphor Bronze Hex Bar size | 2mm~100mm |
| Phosphor Bronze Billet Size | 1/2″ to 495mm Diameter |
| Phosphor Bronze Rectangles Size | 33mm x 30mm to 295mm x 1066mm |

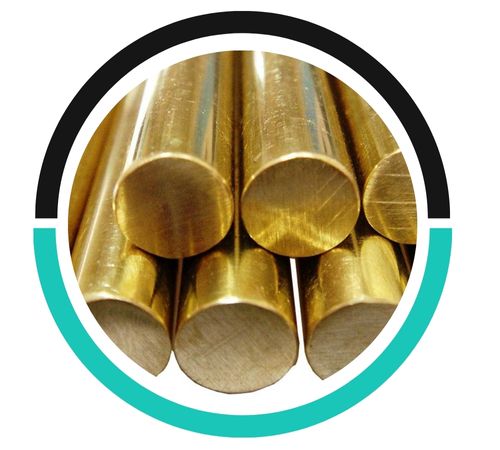

| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Length | 1000mm-6000mm |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Phosphor Bronze Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |

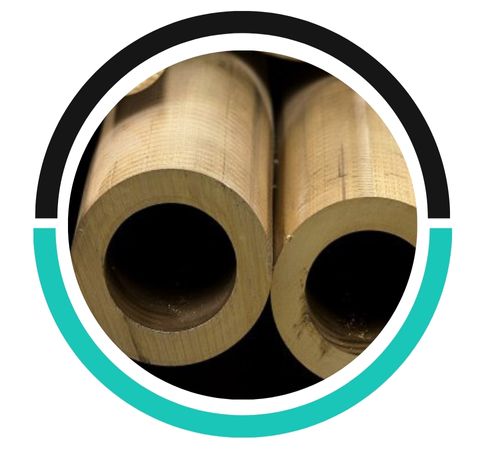

| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Alloy number | Sn | P | Pb | Zn | Cu+Sn+P |
| C5191 | 5.5-7.0 | 0.03-0.35 | ≥99.5 | ||
| C5441 | 3.0-4.5 | 0.01-0.50 | 3.5-4.5 | 1.5-4.5 | ≥99.5 |
| Grade B.S. 1400: 1985 | Nominal Composition | 2% PS N/mm Min | Tensile Strength N/mm Min | Elongation % Min | Brinell Hardness Min |
| PB1 | 89/10/01 | 130 | 250 | 5 | 60 |
| PB1 | 88/12 | 140 | 260 | 7 | 80 |
| PB1 | 90/10 | 130 | 250 | 5 | 60 |
| PB1 | 90.5/9.5 | 130 | 240 | 5 | 80 |
| LPB-1 | 87/8/2/3 | 80 | 175 | 7 | 60 |
| Pb2 | 88/12 | 120 | 195 | 5 | 60 |
| Pb2 PB | 88/12 95/5 | 145 130 | 295 240 | 5 5 | 80 80 |
Phosphorus bronze bars can be welded, but it requires care. The material tends to be brittle at high temperatures, so preheating and using appropriate filler materials are recommended for successful welding.
To select the right phosphorous bronze bar, consider factors such as tensile strength, corrosion resistance, conductivity, the specific environmental conditions, required durability, and mechanical properties for your application.
To select the right phosphorous bronze bar, consider factors such as tensile strength, corrosion resistance, conductivity, the specific environmental conditions, required durability, and mechanical properties for your application.
Phosphorous bronze rods are available in diameters ranging from 1/8" to 12" and lengths up to 20 feet. Finishes include hot-rolled, cold-rolled, extruded, polished, and custom-machined.
These Phosphorous Bronze Bars and Rods find their way into various applications that require strength, corrosion resistance, and endurance against fatigue. They’re frequently used in the production of springs, bushings, bearings, and fasteners for both marine and industrial environments. In the electrical sector, they serve as connectors, switchgear components, and terminals due to their superb conductivity and low friction. The material’s durability and wear resistance make it ideal for gears, shafts, and other mechanical parts. Plus, its non-sparking and anti-corrosive properties make it a valuable choice for chemical processing equipment and other high-performance engineering applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
