Neith Metals, located in Cairo, Egypt, stands out as a leading manufacturer and supplier of high-quality Nilo Alloy Bars and Rods. These products are well-known for their excellent control over thermal expansion and remarkable mechanical stability. The company is dedicated to providing materials that adhere to global quality standards, ensuring they perform reliably even in the toughest conditions. With state-of-the-art production capabilities and a strong emphasis on precision engineering, Neith Metals offers Nilo Alloy products that are perfect for temperature-sensitive and high-performance applications. Industries such as aerospace, electronics, telecommunications, and instrumentation trust their Nilo Alloy Bars and Rods for their consistency and durability.
Nilo Alloy Bars and Rods mainly consist of nickel (36–42%) and iron, with minor additions of elements like cobalt and chromium, depending on the specific grade. These alloys are crafted to deliver a controlled coefficient of thermal expansion, ensuring stability across a wide range of temperatures. On the mechanical side, Nilo Alloys boast impressive tensile strength (between 450–650 MPa), high ductility, and outstanding dimensional stability. This unique blend of thermal and mechanical properties guarantees reliability in precision components where minimal expansion and consistent performance are crucial under varying thermal conditions.
| Grade | Nilo Alloy Round Bar |
|---|---|

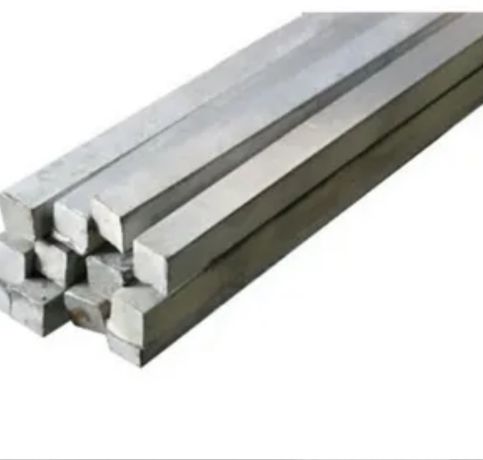

| Nilo Alloy Square bar size | 4 to 100mm |
| Nilo Alloy Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

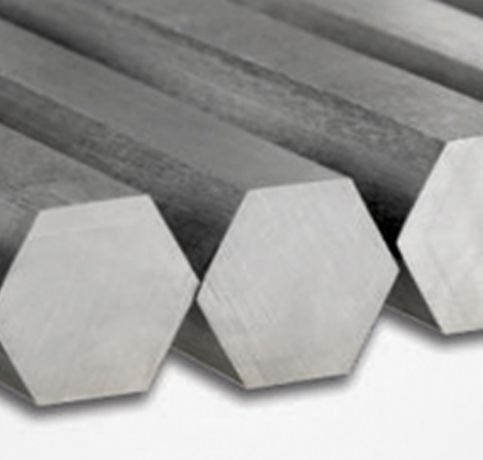

| Alloy Nilo Hex Bar size | 2-100mm A/F |
| Nilo Alloy Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Nilo Alloy Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Alloy Nilo Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nilo Alloy Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nilo Alloy Section | 3.0 to 12.0mm thickness |

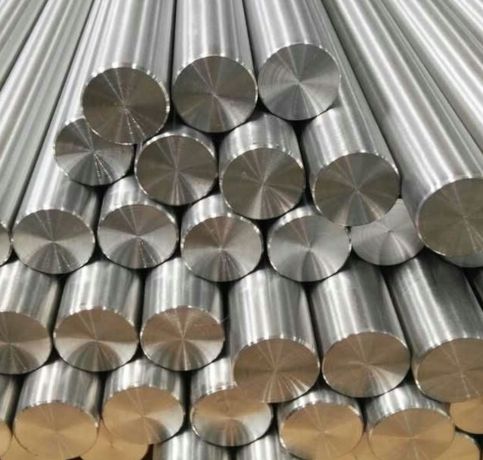

| Alloy Nilo Round bar size | Diameter: 3-~800mm |
| Nilo Alloy Billet Size | 1/2″ to 495mm Diameter |
| Nilo Alloy Round Bar Standard Dimensions | Diameter / Height: |
| Nilo Alloy Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nilo Alloy Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Alloy Nilo Technique | Nilo Alloy Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nilo Alloy Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |

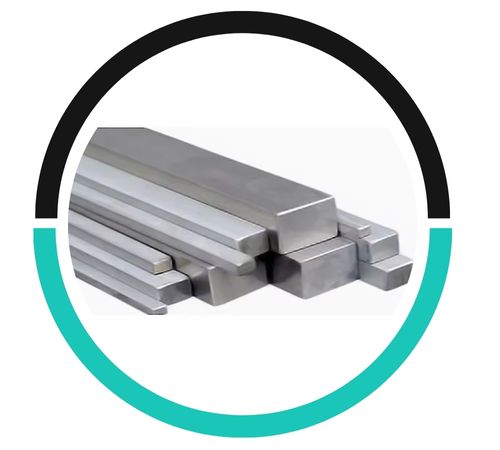

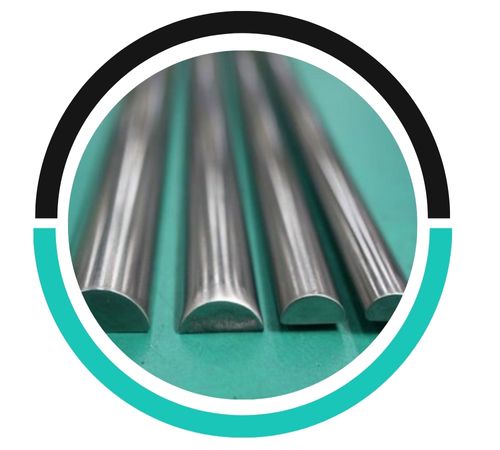

| Form | Nilo Alloy Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square Bar, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nilo Alloy Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | Mn | C | P | S | Si | Ni | Cr | Fe |
| Nilo Alloy 48 | 0.80 max | 0.05 max | 0.025 max | 0.025 max | 0.030 max | 48 | 0.250 max | Bal |
| Nilo Alloy K | 0.50 max | 0.04 max | 17.0 | 0.10 max | 0.20 | 29.0 | 0.20 max | 53.0 |
Properties | Metric | Imperial |
|---|---|---|
Modulus of elasticity | 130 GPa | 18900 ksi |
Tensile strength | 520MPa | 75.4 ksi |
Yield strength | 340 MPa | 49.3 ksi |
Nilo alloy bars and rods excel in high-temperature environments due to their excellent thermal stability, low thermal expansion, and resistance to thermal shock, making them ideal for high-precision applications.
Yes, Nilo Alloy rods can be customized in size and length to meet specific requirements. Manufacturers typically offer tailored solutions based on customer needs for various applications.
To maintain Nilo Alloy bars, clean regularly with a mild detergent, avoid harsh chemicals, store in a dry environment, and inspect for wear or corrosion. Lubricate if necessary.
These Nilo Alloy Bars and Rods find extensive use in applications where controlled thermal expansion and stability are vital. They’re often used in the production of thermostatic bimetals, glass-to-metal seals, and electronic components that need to maintain dimensional accuracy despite temperature changes. In the aerospace and defense sectors, these alloys are essential for engine control systems, sensor housings, and precision instruments. The telecommunications industry also relies on them for microwave and radio-frequency equipment. Their ability to uphold mechanical integrity and predictable expansion makes them invaluable for high-precision engineering applications across various advanced fields.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
