Neith Metals stands out as a top-notch manufacturer and supplier of Inconel 617 Bars and Rods, proudly based in Cairo, Egypt. Known for our commitment to quality, precision, and reliability, we specialize in delivering high-performance nickel-chromium-cobalt-molybdenum superalloys that not only meet international standards but also excel in demanding industrial settings. Our Inconel 617 Bars and Rods are highly sought after for their remarkable high-temperature strength, resistance to oxidation, and long-lasting durability, making them perfect for applications in aerospace, power generation, and chemical processing. Thanks to our advanced manufacturing techniques and strict quality control measures, Neith Metals offers robust, dependable, and enduring solutions that guarantee superior performance, safety, and efficiency in even the most challenging high-temperature industrial environments.
When it comes to composition, Inconel 617 Bars and Rods are primarily made up of 52% nickel, 22% chromium, 12% cobalt, and 9% molybdenum, along with trace elements of iron, carbon, and manganese. This nickel-based superalloy is known for its exceptional high-temperature strength, excellent resistance to oxidation and corrosion, and outstanding creep resistance. The mechanical properties include a tensile strength ranging from 690 to 1030 MPa, a yield strength of about 275 to 550 MPa, and a density of 8.3 g/cm³. Additionally, Inconel 617 Bars and Rods boast excellent toughness, ductility, and stability during thermal cycling, making them ideal for high-demand, high-temperature applications.
| Standards | ASTM B166, ASME SB 166, AMS 5887 |
|---|---|
| Specifications | DIN, EN, ASTM, JIS, ASME, BS, AISI |

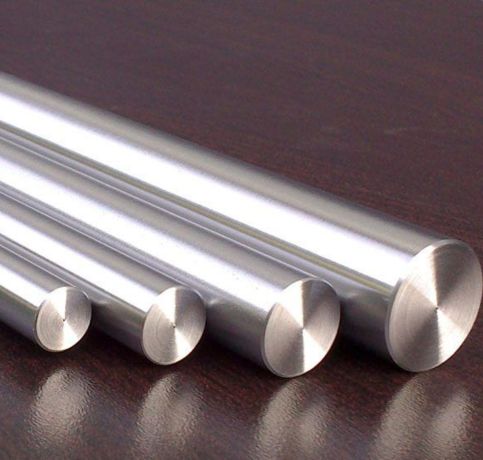

| 617 Inconel Round Bars size | Diameter: 3-~800mm |

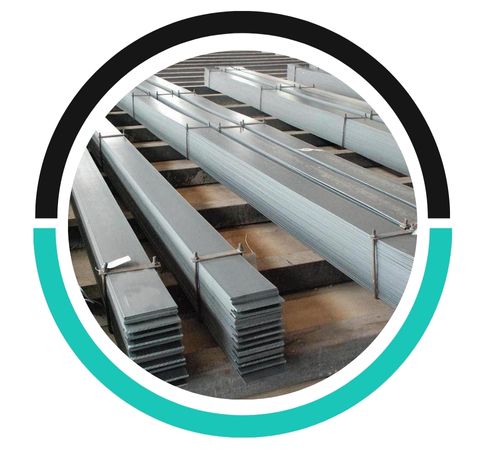

| Inconel 617 Flat Bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Inconel 617 Angle Bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Inconel 617 Channel Bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Alloy 617 Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Inconel 617 Billet Size | 1/2 to 495mm Diameter |

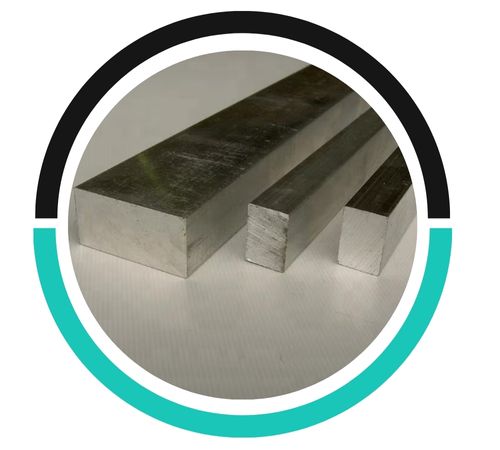

| Inconel 617 Rectangle Bar Size | 33 x 30mm to 295 x 1066mm |
| Inconel 617 Hex Bar size | 2-100mm A/F |
| Inconel 617 Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Diameter | 20mm, 30mm, 50mm, 80mm, 100mm, 150mm, 200mm, 500mm |
| Length | 1m-12m or as required |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

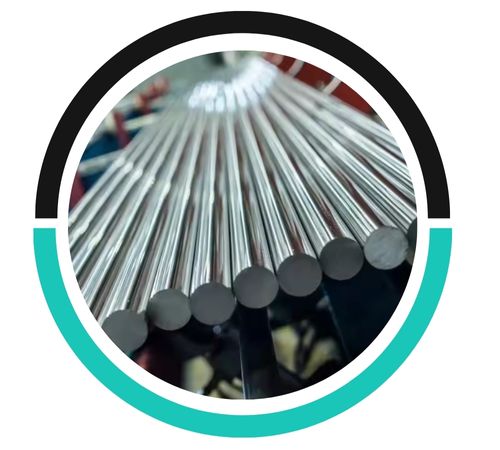

| Finish | hot rolled annealed, peeled, Bright, hot-worked and cold-worked rod and bar, centreless ground, Centreless Ground and Black, Polish, Cold Rolled (CR), hot rolled ( R), smooth turned, Cold (bright) drawn, Grinding, slit rolled edge, Rough Turned. |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bars, Cold Rolled, Rod |
| Processing | Bars cutting to 650mm |

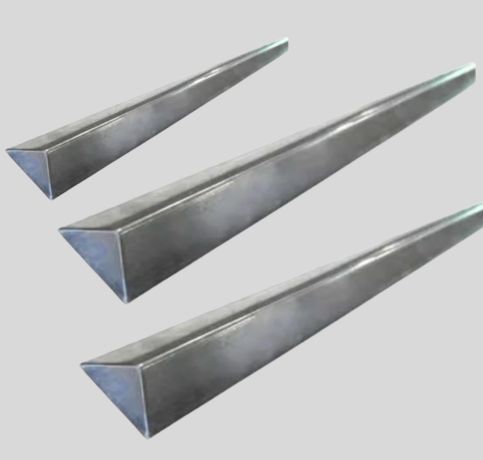

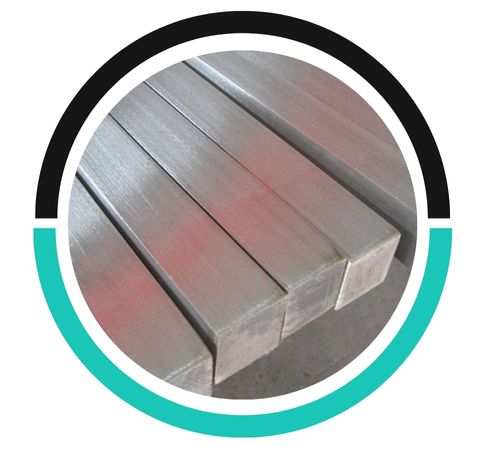

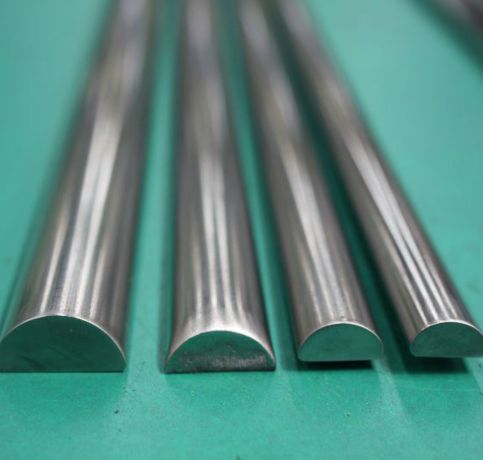

| Form | Rod, Round, Channel Bars, T-Bars, Flat Bars, Precision Ground Bars, Blocks, Square, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bars, Ingot, Billet, I/H Bars, Forging etc. |
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 617 | 2.4663 | N06617 |
| Grade | Ni | Cr | Fe | C | Mn | S | Mo | Si | Co |
| Inconel 617 | 48.85 – 62 | 20 – 24.0 | Balance | ≤ 0.15 | ≤ 1 | – | 8 – 10 | ≤ 1 | 10-15 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.3g/cm³ | 1363°C | ≥ 485 MPa | ≥ 275 MPa | 25 % |
Yes, Inconel 617 Bars/Rods are designed to perform exceptionally well in high-temperature environments up to 980°C.
Yes, they can be tailored in terms of size, dimensions, and specifications to meet specific industrial requirements.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@neithmetals.com
Inconel 617 Bars and Rods find extensive use in industries that require top-notch high-temperature performance and superior corrosion resistance. In the aerospace sector, they are utilized in turbine blades, combustion chambers, and exhaust components. In power generation, you’ll find them in gas turbines, heat exchangers, and boilers. The chemical and petrochemical industries rely on them for reactors, piping systems, and valves that come into contact with aggressive chemicals. Moreover, Inconel 617 Bars and Rods are perfect for nuclear, marine, and offshore applications where durability, thermal stability, and corrosion resistance are absolutely essential. Neith Metals is dedicated to ensuring that our products meet the highest standards for performance and reliability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
