Neith Metals, based in Cairo, Egypt, stands out as a top-notch manufacturer and reliable supplier of high-quality Aluminium 5005 Bar and Rods. With a strong dedication to excellence, Neith Metals delivers durable, corrosion-resistant aluminum products designed to meet the needs of various industrial sectors. By employing advanced manufacturing techniques and rigorous quality control measures, the company guarantees that each product adheres to both local and international standards. Renowned for its reliability and exceptional service, Neith Metals is committed to fostering lasting partnerships throughout the region, providing Aluminium 5005 Bar and Rods for applications in construction, transportation, architecture, and other engineering fields.
Aluminium 5005 Bar and Rods are primarily made up of aluminum (about 97.5%), with small amounts of magnesium (ranging from 0.5% to 1.1%), along with trace elements like iron, silicon, copper, and others. This alloy is celebrated for its outstanding corrosion resistance, especially in marine and industrial environments. It boasts moderate strength, with a tensile strength between 170 and 230 MPa, and offers good weldability and cold-working properties. Although it can’t be heat treated, it can be strengthened through strain hardening. Aluminium 5005 also provides a fantastic surface finish and responds well to anodizing, making it ideal for both structural and decorative applications.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |
| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |

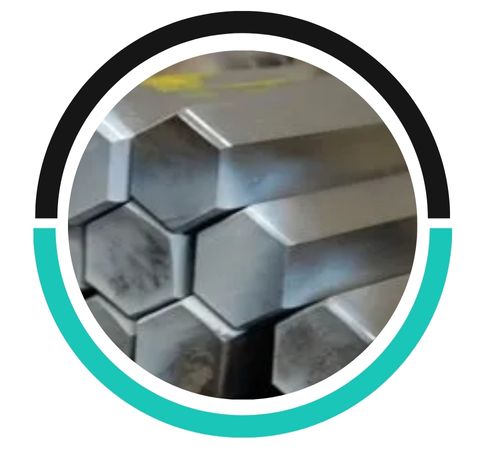

| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Weight% | Al | Si | Fe | Cu | Mn | Cr | Mg | Zn | Others Each | Others Total |
| 5005 | Bal | 0.30 max | 0.70 max | 0.20 max | 0.20 max | 0.10 max | 0.50 / 1.10 | 0.25 max | 0.05 max | 0.15 max |
| Material | Temper | Tensile Strength (N/mm²) | Yield Strength (N/mm²) | Elongation on 50mm (%) | |||
| 0.5 mm | 0.8 mm | 1.3 mm | 2.6mm | ||||
| 5005 | 0 | 95-145 | – | 18 | 20 | 21 | 22 |
| 5005 | H12 | 125-170 | 80 | 4 | 5 | 6 | 8 |
| 5005 | H14 | 145-185 | 100 | 3 | 3 | 5 | 6 |
| 5005 | H18 | 185 min | 165 | 1 | 2 | 3 | 3 |
| European Standard | GERMANY | UNS | WERKSTOFF NR. |
| B57S | Al-Mg-1 | A95005 | – |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 5005 bars can be welded. It has excellent weldability, especially using TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas) welding processes. Proper cleaning of the surface before welding is essential to prevent contamination and ensure strong welds.
Considerations for installing Aluminium 5005 bars and rods include ensuring proper welding techniques, avoiding galvanic corrosion, considering expansion and contraction due to temperature changes, and ensuring correct surface preparation for durability.
Aluminium 5005 has good corrosion resistance, particularly in atmospheric and marine environments, due to its high magnesium content. However, like all aluminium alloys, it can corrode under certain conditions, such as in highly acidic or alkaline environments. To prevent corrosion, surface treatments like anodizing or applying protective coatings are often used, especially in aggressive environments.
Aluminium 5005 Bar and Rods find extensive use across various industries due to their versatility and performance. In construction, they are often utilized for roofing sheets, facades, and cladding because of their durability and resistance to corrosion. The transportation sector benefits from their lightweight and strength, incorporating them into vehicle body panels and marine fittings. Their excellent anodizing characteristics make them perfect for architectural finishes, signage, and decorative elements. Additionally, Aluminium 5005 is prized in electrical applications for its good conductivity and smooth surface. Its adaptability makes it a vital material for many different uses.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
